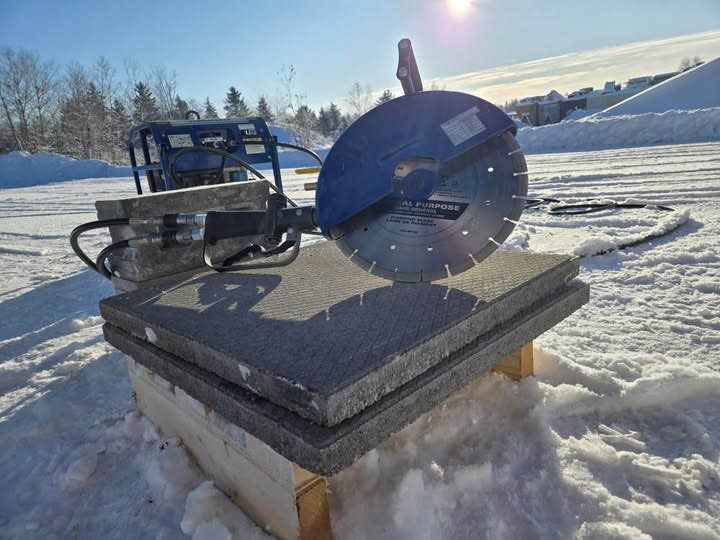

HANDHELD CUTTER / CH140

Compact Power for Precise and Demanding Cutting

1. High-Torque Hydraulic Performance

Driven by a hydraulic motor, the cutter delivers high torque with smooth and persistent cutting, even under heavy load.

2. Slim & Compact for Tight Spaces

Its compact and slim body allows cutting close to walls and in confined areas where larger machines cannot reach.

3. Lightweight – Only 7 kg

Weighing just 7 kg, it reduces operator fatigue and enables both vertical and horizontal cutting with ease.

4. Enhanced Safety Features

Equipped with a safety lock to prevent accidental activation, ensuring safe operation on demanding job sites.

5. Dust Control with Water Supply Port

By connecting a water source to the integrated supply port, dust can be significantly reduced for cleaner and safer working conditions.

6. Adjustable Blade Guard – Up to 90°

The blade cover can be adjusted up to 90°, allowing easy wall cutting and flexible operation according to the cutting angle.

7. Ideal for Enclosed and Emission-Sensitive Areas

With no engine on the tool body, there are zero exhaust emissions, making it safe for use in trenches, holes, tunnels, and other poorly ventilated environments.







SPECIFICATIONS



Dimensions (mm) 655×200×377 (Without blade)
Weight (kg) 7 (Without blade)
Max Pressure (MPa) 17.2
Allowable Back Pressure (MPa) 4
Rated Oil Flow (ℓ/min) 20-30
Max Oil Flow (ℓ/min) 30
R.P.M. 2000 (at 20 ℓ/min)
3000 (at 30 ℓ/min)
Torque (N・m) 13N・m(20 L/min)
21N・m(30 L/min)
Standard Blade Dry type silent diamond blade 14″
(O.D. φ355mm)
Shaft size Available from;
-25.4mm
-27.0mm
-30.5mm
Cutting depth (mm) 138
Coupling 3/8″ Couplers
Extension Hose (m) 3/8″ Couplers x 10m
Hydraulic Oil ISO VG32(Standard),  ISO VG46 equivalent, or equivalent

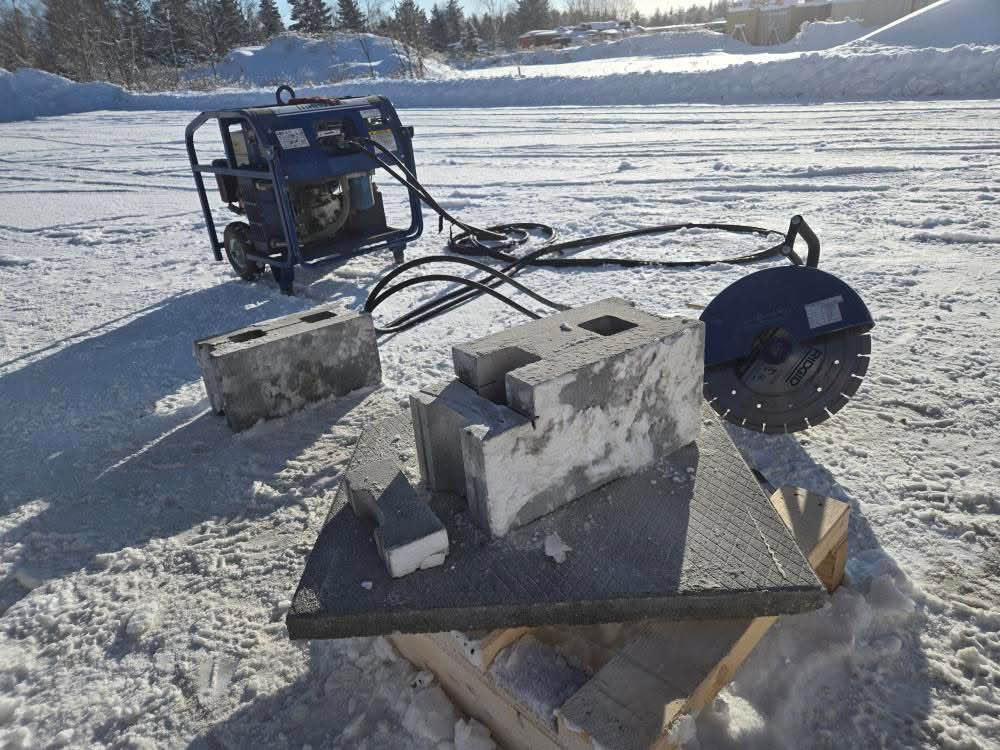

USE UH130 FOR POWER SOURCE


・Adjustable oil flow in three modes.
 Choose either 20ℓ/min, 25ℓ/min, or 30ℓ/min.



 (Check specification of UH130)
