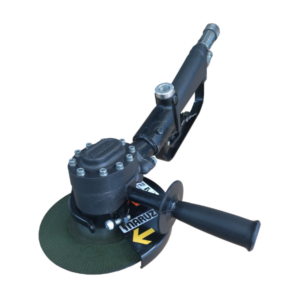

GH180U
Hydraulic Grinder
Lightweight and compact at only 4 kg, yet delivers outstanding power with a hydraulic motor.
- Ideal for metal grinding and cutting
Suitable for cutting the top edge of U-shaped drainage channels - Operable in rain or underwater,
Ensuring reliable performance in harsh environmentsWidely used for underwater maintenance, such as:
①Hull cleaning and maintenance of ships
②Removal of marine growth prior to thickness inspection of port and steel structures - Interchangeable attachments
it allows more than just grinding wheels
→ Equipped with a dedicated brush, it efficiently removes algae from tanks, making it perfect for aquarium maintenance
SPECIFICATIONS
| Dimensions (mm) | L426×W298×T223 |
| Weight (kg) | 4(w/o grind stone) |
| Working Pressure (MPa) | 8～11(1060～1595psi) |
| Max Pressure (MPa) | 21.4(3104psi) |
| Flow Range (ℓ/min) | 20～30 |
| No load speed(rpm) | 20ℓ/min 4230(RPM) 30ℓ/min 6100(RPM) |
| Disc size(mm) | Outer Dia’： φ125～φ180 Thickness：3～6mm Inner Dia’：φ22 |
| Coupling | 3/8” Couplers |
|
Allowable Back Pressure (MPa) |
4.0 |
| Extension hose(m) | 【Max :30m】 3/8”×10m×2sets + 1/2”×10m×1set |
